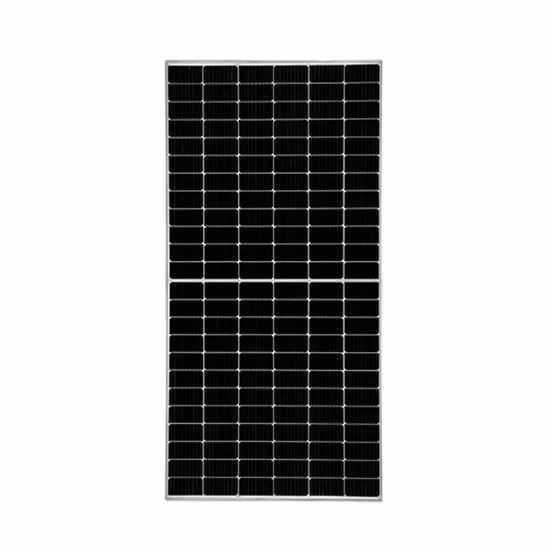

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

Package size per unit product 240.00cm * 120.00cm * 5.00cm Gross weight per unit product 31.000kg 550W Half Cell High Ef
SHARE

Description

Basic Info
Model NO. NB-SP-023
After-sales Service Offer

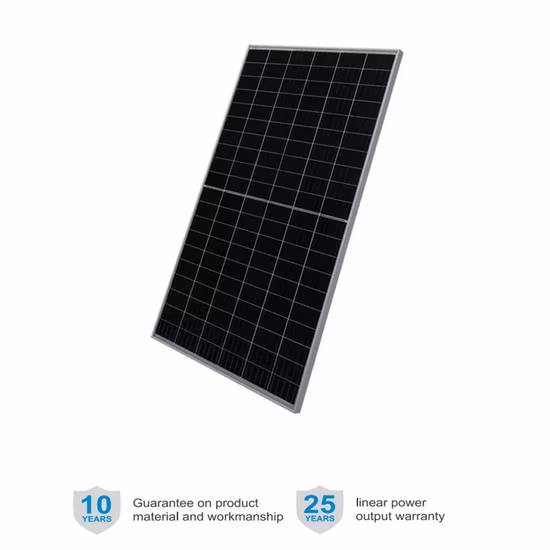

Warranty 25 Years
Number of Cells 210 Cells
Application Light Industry
Condition New
Certification ISO, CE
Material Monocrystalline Silicon
After-Sale Service Yes
Customization Yes
IP Rate IP65
Weight 24.5kgs
Package 2PCS
Brand OEM
Guarantee Year 10 Years
Module Efficiency 22%
Tolerance 3%
Sample Provided
Transport Package Carton Package
Specification 2085*1098*35mm
Trademark Autex/OEM
Origin China
Production Capacity 1200/Day
Packaging & Delivery
Package size per unit product 240.00cm * 120.00cm * 5.00cm Gross weight per unit product 31.000kg
Product Description

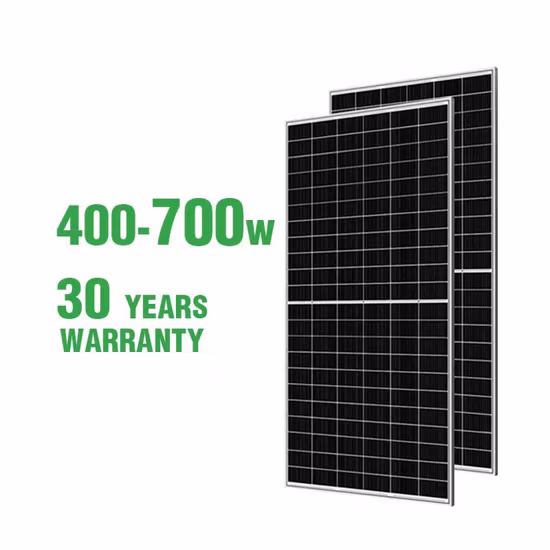

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System



550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

Type of ModuleNB-450WNB-460WNB-480WNB-490W
Maximum Power450W460W480W490W
Tolerance ±3%±3%±3%±3%
Open Circuit Voltage41.9542.5643.6843.98
Short Circuit Current13.713.814.0414.23
Maximum Power Voltage35.8336.3537.3137.56
Maximum Power Cuurent12.5612.6512.8713.05
Module Efficiency19.9420.3923.5023.90
Solar Cell Efficiency22.5323.0423.5023.90
Series Fuse Rating 20202020
IP RatingIP65
Maximum System VoltageDC 1500
Operating Temperature-40-85ºC
Dimension2102*1040*35mm
Weight24.5KGS/PCS
Packing2 pcs/carton or 30pcs/per pallet

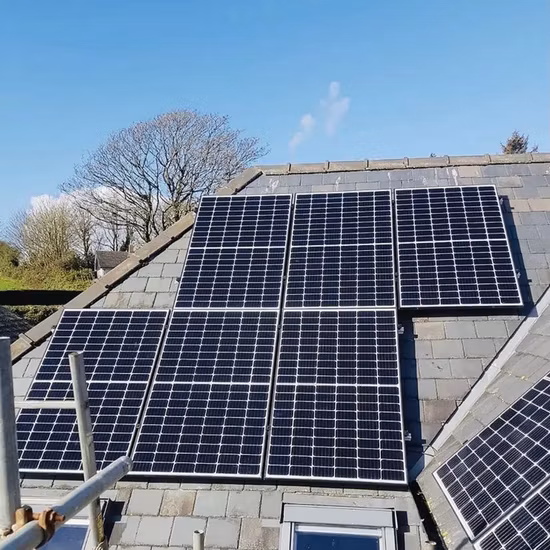

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System


Glass

Antireflective glassTranslucency of normal luminance is increased by 2%Module efficiency is increased by 2%Self-cleaning functionService life is as long as 25 years (30 years optional)

Solar Cell

High Efficiency PV CellsAppearance ConsistencyColor sorting ensure consistent appearance on each moduleAnti-PID

Frame

Conventional frameSilver or black frames are optionalBoost bearing capability and prolong service lifeSerrated-clip design tensile strengthSeal-lip designglue injection

Junction box

Conventional standalone edition and engineering custom editionQuality diode ensures module running safetyIP67 protection levelHeat dissipation



550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System


Half Cell module technology

By using half a battery, the current in each busbar is halved. The internal loss in a half cut module is 1/4 that of a full size battery module.

Less Shading Loss

Shading loss of half-cell is much better than normal module in certain shading conditions.

Half-cell technology

The Half-Cell design ensures improved coloring response, resulting in higher yields when partially coloring modules. Under certain shading conditions, semi battery modules experience much better shading losses than traditional modules.

Low Working Temperature

Half cell module reduced by about 2 degrees



550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

550W Half Cell High Efficiency Mono PV Module Solar Panel for Home Solar Energy System

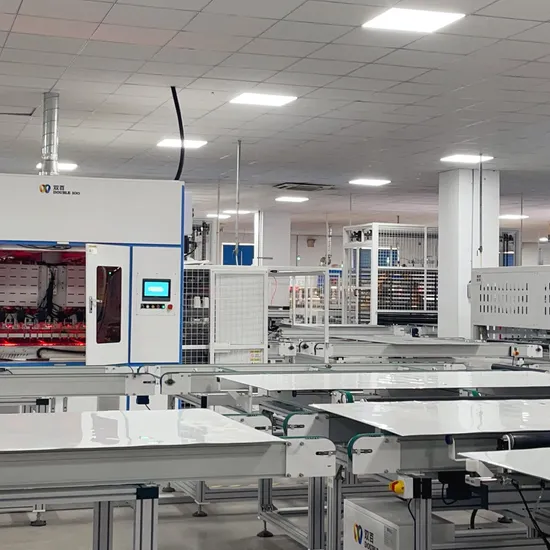

Jiangsu autex construction group is a collectivized enterprise integrating design, production and construction.The group has six subsidiaries: jiangsu autex transportation equipment co., LTD., jiangsu autex lighting engineering co., LTD., jiangsu autex landscape engineering co., LTD., jiangsu autex electric power engineering co., LTD., jiangsu autex intelligent technology co., LTD., jiangsu autex design co., LTD. The group's main products: street lights, smart street lights, traffic lights, traffic guardrail, traffic signs, electronic police, bus shelter, photovoltaic modules, lithium batteries, road lamp poles, LED light source, wire and cable production and sales. The group has more than 20 construction and design qualifications. More than 50 professional project managers. Every Autex person will be in good faith, professional, high quality, high efficiency as the criterion, make every effort. The group is willing to work with people of insight from all walks of life hand in hand, win-win cooperation, create brilliantJiangsu autex construction group is a collectivized enterprise integrating design, production and construction.





Q: What is a photovoltaic (PV) system design?
A: Photovoltaic (PV) system design refers to the process of determining the components and specifications needed for a solarenergy system that meets specific energy needs and requirements.

Q: What are the factors to consider when designing a PV system?
A: The factors to consider when designing a PV system include location, shading, orientation, slope, electricity consumption, budget,and local regulations.

Q: How do I determine the size of a PV system?
A: The size of a PV system can be determined by considering the energy consumption, the amount of available space for panels, andthe budget for the system.

Q: What is the difference between a grid-tied and an off-grid PV system?
A: A grid-tied PV system is connected to the main electricity grid and sends excess energy generated back to the grid. An off-grid PVsystem is a standalone system that is not connected to the main electricity grid and stores energy in batteries for later use.

Q: What is the impact of shading on a PV system?
A: Shading can significantly impact the performance of a PV system by reducing the amount of sunlight reaching the panels. Properdesign and positioning of panels can help minimize the impact of shading.
